Introduction to UD format

Universal dependencies

Universal Dependencies (UD) is a project that is developing cross-linguistically consistent treebank annotation for many languages.

Note

Treebank is a database of sentences which are annotated with syntactic information, often in the form of a tree.

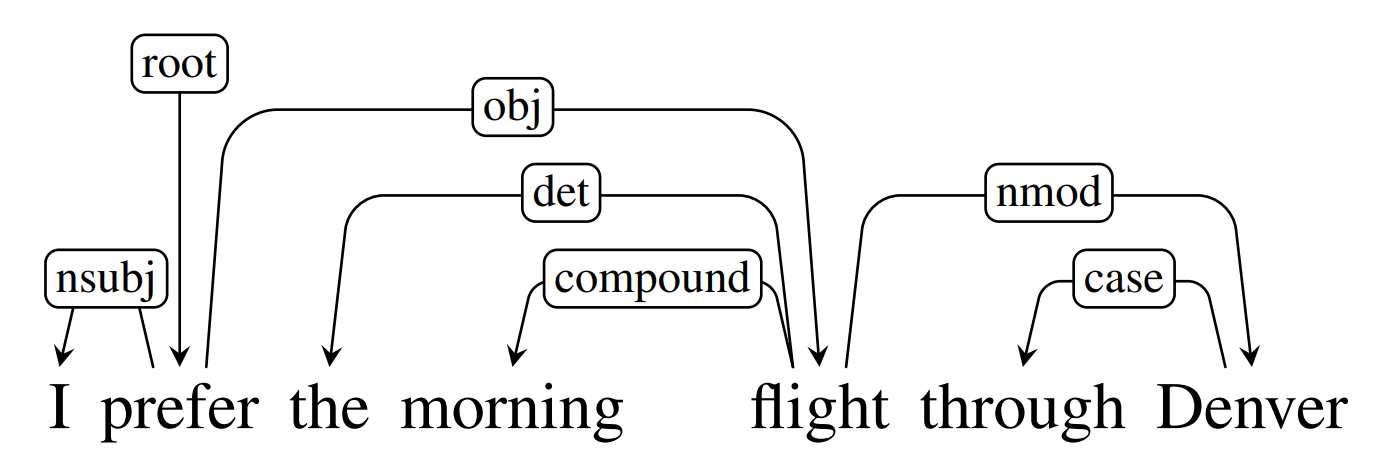

In universal dependencies paradigm, a language is represented as a graph, meaning that all words are related to each other in a some hierarchical form, and that is what dependency grammar is about.

sentence_as_graph

In such terms, a syntactic structure of a sentence is decoded using solely words and directed binary grammatical relations. The relations in a dependency structure capture the head-dependent relationship among the words in a sentence

CoNLL-U annotation

CoNLL-U (Conference on Natural Language Learning - Universal Dependencies) format is a specific file format for representing syntactic annotations in the Universal Dependencies framework.

It describes both syntactic and morphological features for each word.

Here is an excerpt from the official description:

Sentences consist of one or more word lines, and word lines contain the following fields:

  • ID: Word index, integer starting at 1 for each new sentence;

  • FORM: Word form or punctuation symbol;

  • LEMMA: Lemma or stem of word form;

  • UPOS: Universal part-of-speech tag;

  • XPOS: Optional language-specific (or treebank-specific) part-of-speech / morphological tag; underscore if not available;

  • FEATS: List of morphological features from the universal feature inventory or from a defined language-specific extension; underscore if not available;

  • HEAD: Head of the current word, which is either a value of ID or zero (0);

  • DEPREL: Universal dependency relation to the HEAD (root if HEAD = 0) or a defined language-specific subtype of one;

  • DEPS: Enhanced dependency graph in the form of a list of head-deprel pairs;

  • MISC: Any other annotation.

So, for the following text “Медведь спит под деревом.” the annotated file will look like this:

# text = Медведь спит под деревом.
1   Медведь    медведь   NOUN    _   Animacy=Anim|Case=Nom|Gender=Masc|Number=Sing   0   ROOT    _   _
2   спит    спать   VERB    _   Aspect=Imp|Mood=Ind|Number=Sing|Person=3|Tense=Pres|VerbForm=Fin   1   acl:relcl   _   _
3   под под ADP _   _   _   4   case    _   _
4   деревом дерево  NOUN    _   Animacy=Inan|Case=Ins|Gender=Neut|Number=Sing    2   obl _   SpaceAfter=No
5   .   .   PUNCT   _   _   1   punct   _   _

Here, each line corresponds to a word/token in the sentence and columns represent various annotations for each word/token.

The first column is the word index, the second column is the word form, the third column is the lemma (base form) of the word, the fourth column is the part-of-speech (POS) tag.

Other columns may represent additional morphological features, syntactic dependencies, and so on.

UDPipe

UDPipe is a trainable pipeline for tokenization, tagging, lemmatization and dependency parsing of CoNLL-U files. UDPipe is language-agnostic and can be trained given annotated data in CoNLL-U format.

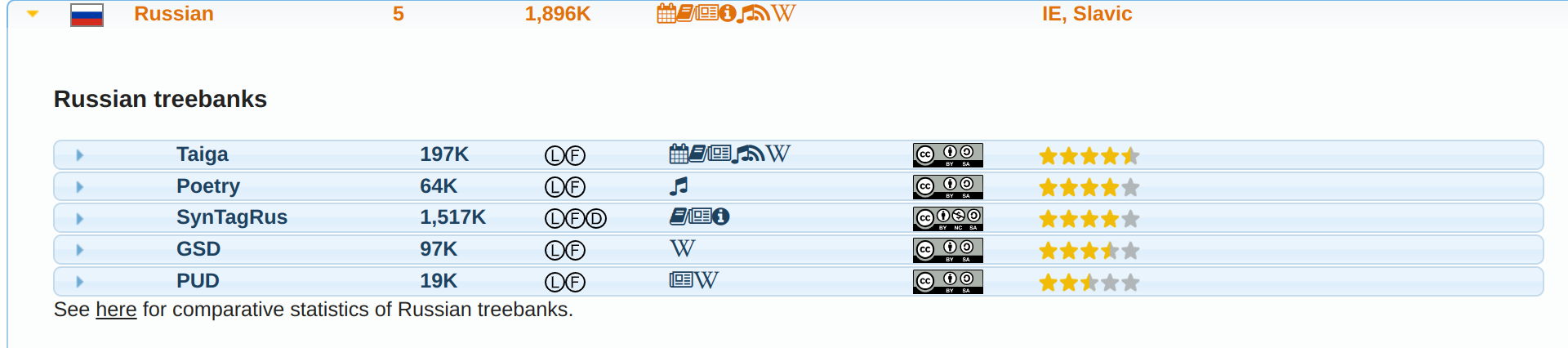

So, the obtained CoNLL-U annotation might be different depending on the UDPipe model used to process text. As of now, there are 5 models trained on the Russian language treebanks.

udpipe_models_russian

To view more details about the models and examine statistics refer to the official UD website.

In our work, we will be using pre-downloaded UDPipe model based on SynTagRus treebank. You can find it in the releases here.

Python frameworks

There are numerous frameworks that allow working with UDPipe models via Python.

The very first one is the official UDPipe library from Institute of Formal and Applied Linguistics. However, due to its low-level implementation and lack of documentation, in our work we will be working with the spacy-udpipe library, which is a friendlier wrapper over the original udpipe module that allows combining spacy interface with UD parsing solutions.
